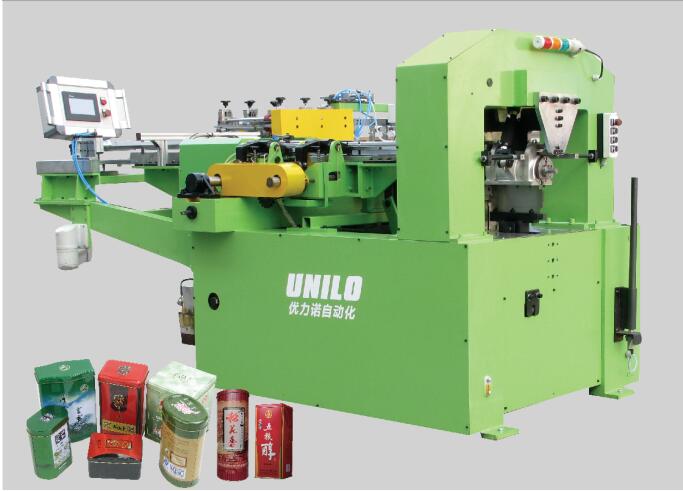

This machine provides high-quality lock seaming for
tinplate cans. It integrates auto feeding, edge cutting, folding,
and lock seaming into a single, fully automated system.
This machine provides high-quality lock seaming for tinplate cans. It integrates auto feeding edge cutting folding and lock seaming into a single fully automated system.
Fully automated operation
High productivity output
Variable frequency speed control
Quick and easy tool changeover
PLC-controlled system for reliability
High-quality materials used for notching and lock seaming tools
Centralized lubrication system
Easy manual adjustment—no touchscreen required; single-action control
Pneumatic clutch with manual debugging function
Double sheet detection system
Model | CBM200 | CBM300-1 | CBM300-2 |
Can Size：Round Can | Φ65mm~Φ190mm | Φ150mm ~Φ300mm | Φ100mm 〜Φ300mm |
Square Can | 70X70~140X140mm | 100X100〜230X230mm | 100X100-230X230mm |
Can Height | H50 to 300mm | H50 to 300mm | H50 to 300mm |
Tinplate Thickness | 0.16~0.38mm | 0.16~0.38mm | 0.16~0.38mm |
Capacity | 25 to 60/100cpm | 25 to 30cpm | 25 to 30cpm |
Power | 7kw | 7kw | 7kw |
Air Consumption | 2 m3/min | 1.5 m3/min | 1.5 m3/min |
Net weight | 2000kgs | 2800kgs | 2800kgs |
Dimension | 3000x2500x1600mm | 3200x3100x2000mm | 3200x3100x2000mm |
Machine speed is dependent on Can Height
